SERVICE COURSE SRAM RED | SIZE M

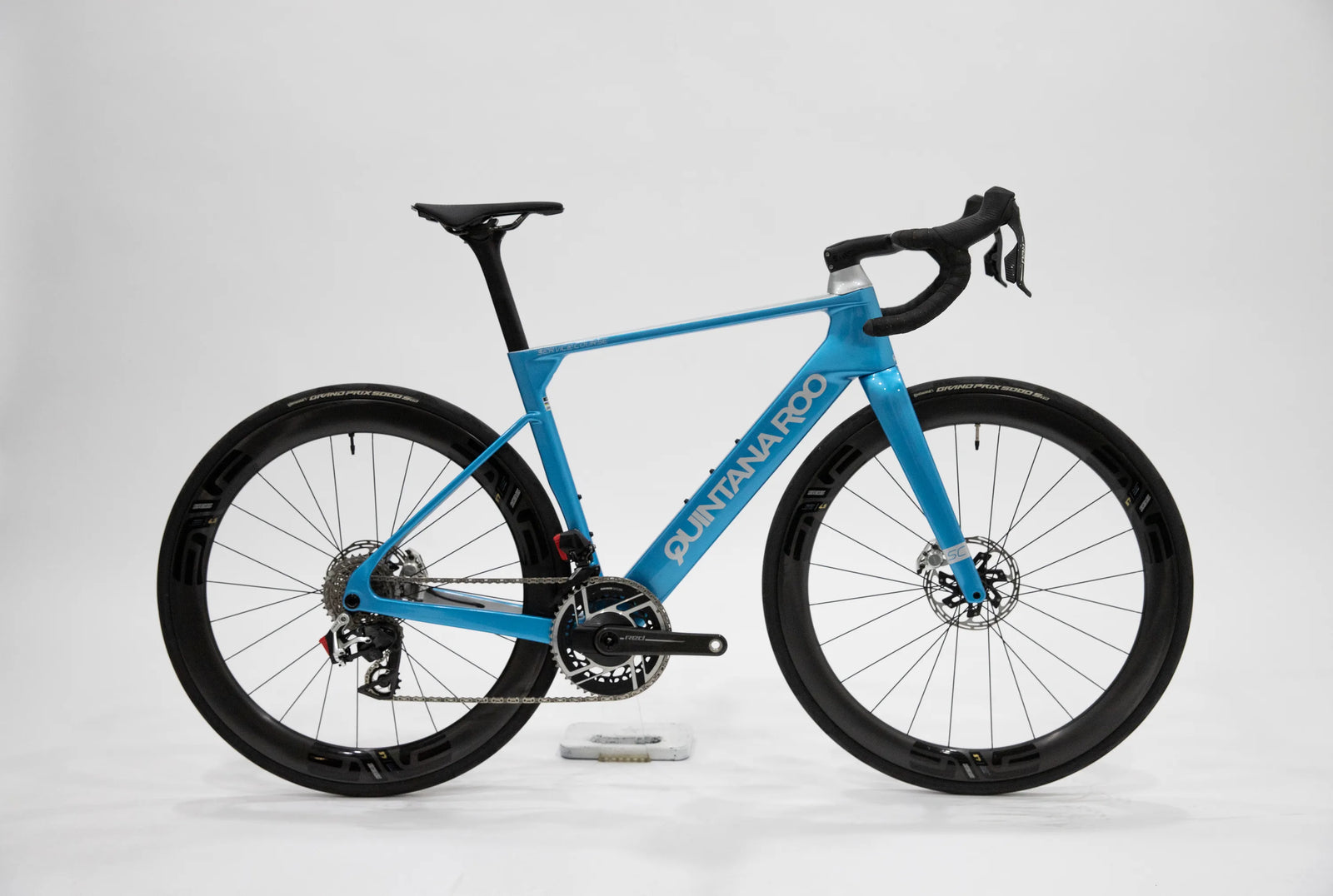

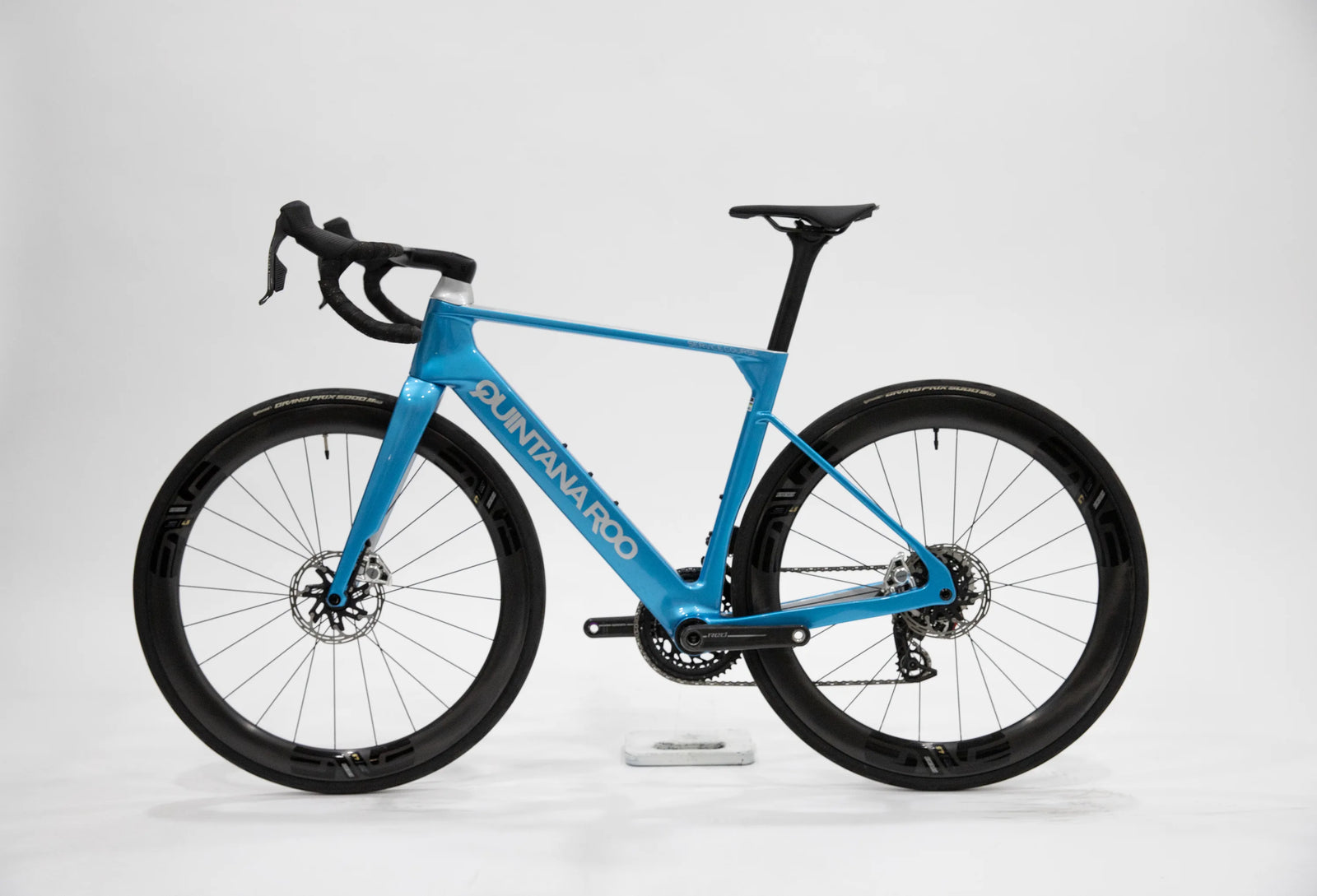

Name: Service Course SRAM RED | Size M
Brand: Quintana Roo Tri
Price: 8249.0 USD
Availability: InStock

$8,249 USD $8,249 MSRP $10,999

In stock Out of stock

[QR-690] Service Course (M, Blue Aegir, Argent Paint, SRAM RED AXS E1, NA, Recommended, Enve SES 4.5, Integrated ENVE SES AR IN-Route Bar)

Note: Demo Bikes do not come with Bottle Cages or Pedals

Easy Financing

Shipping Worldwide

EXPLORE THE DETAILS

The Service Course is a master of solo breakaways and fast sprint finishes. It corners with surgical precision, remains stable in crosswinds, and responds instantly to rider inputs and accelerations. It is your ultimate road racing weapon.

Aero Cockpits - Vision and ENVE aero cockpit options to achieve your fastest position
Aero Headtube - Extended, narrowed, and shaped to reduce frontal area and direct air rearward
Aero Fork - All-new fork design creates efficient airflow around the front tire
Aero Downtube - Deep, aggressive shape reduces turbulence and keeps airflow attached
16.15 lbs (M, SRAM RED) - Slimmed down toptube, seattube, and seatstays reduce weight
Wide Tire Clearance - Clearance for tires up to 36mm wide
UDH - Universal Derailleur Hanger for serviceability and compatibility
Threaded T47A BB - Silently increases stiffness, serviceability, and reliability


Size	XS	S	M	L
Stack	51.5cm	53.5cm	56cm	58.5cm
Reach	37cm	38cm	39cm	40cm
Standover Height	71.1cm	74.3cm	77.5cm	80.9cm
Top Tube Length virtual horizontal	51.3cm	53.4cm	55.6cm	57.3cm
Seat Tube Angle	74.5˚	74˚	73.5˚	73.5˚
Seat Tube Length	41cm	45cm	48.5cm	52cm
Head Tube Angle	71˚	72˚	73˚	73˚
Head Tube Length	10.2cm	11.9cm	14.4cm	17.1cm
Wheelbase	97.6cm	98.3cm	99.3cm	101.2cm
Front Center	57.3cm	58.4cm	59.2cm	61.1cm
Chainstay Length	41.1cm	41.1cm	41.1cm	41.1cm
BB Drop	7.4cm	7.4cm	7.2cm	7cm
Trail (cm - 28mm tire)	6.84cm	6.2cm	5.57cm	5.57cm
Fork Offset	4.7cm	4.7cm	4.7cm	4.7cm

155cm 5' 1" - 168cm 5' 6"

163cm 5' 4" - 175cm 5' 9"

170cm 5' 7" - 180cm 5' 11"

180cm 5' 11" - 193cm 6' 4"

The amount of assembly required depends on shipping option you select. Typically our bike assembly runs between 30 to 45 minutes. Check out our shipping and delivery options to find the best option for you and your budget.

Triple check the seatpost battery/Di2 wire connection. Many times even though you think you have the wire firmly connected, give it another push and 9 times out of 10 the system comes to life.

We spec different length components on our bikes based on common lengths per each size of bike. If you are looking to specify what length components or the gearing you'd like on your new Quintana Roo just live-chat or contact us and we'll get you started on a custom order.

Absolutely. Our bikes are built to order so you can customize however you'd like. If there are components you'd really like on your bike but don't see them offered live-chat or contact us for availability and a custom quote!
