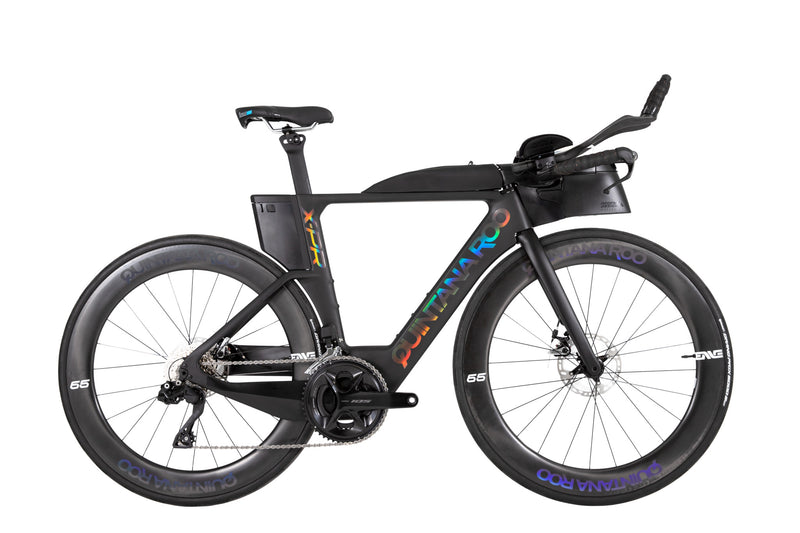

Ironman X-PR

Made to Order and Professionally Assembled

|

Lead Time 2 Weeks

The best performance value in triathlon. Get pro-level aerodynamics without the pro-level price tag. X-PR makes it easy for triathletes to take their racing to the next level.
Looking for Frameset? Click here.

These components are required:

Your total:
Your total:
USD

YOUR BUILD HIGHLIGHTS

WHERE PERFORMANCE BEGINS.

The X-PR makes elite-level speed more accessible—but don’t mistake it for a starter bike. It’s your gateway to riding faster, further, and stronger.

LIFETIME WARRANTY
Ride with peace of mind knowing your bike is covered for life by our rider-first warranty.
SHIPPING WORLDWIDE
Flat-rate shipping to the US, Canada, Europe, and the UK with fast delivery, and easy assembly.
EASY FINANCING
Turn your dream bike into reality with low monthly payments that fit your budget.

EXPLORE THE DETAILS

Wind tunnel-tested and proven in race conditions with our pros, the V-PRi is our fastest machine yet. The V-PRi features Quintana Roo’s first frame-integrated fueling system: FuelBay™, allowing triathletes to carry both nutrition and hydration inside the frame, without compromising the frame’s clean aerodynamic lines, maintaining the fastest silhouette possible.

  • Exclusive IRONMAN paint scheme and M-Dot logo on top tube
  • Personalized with the owner’s name (or any other desired motto or statement) alongside the M-Dot on the top tube

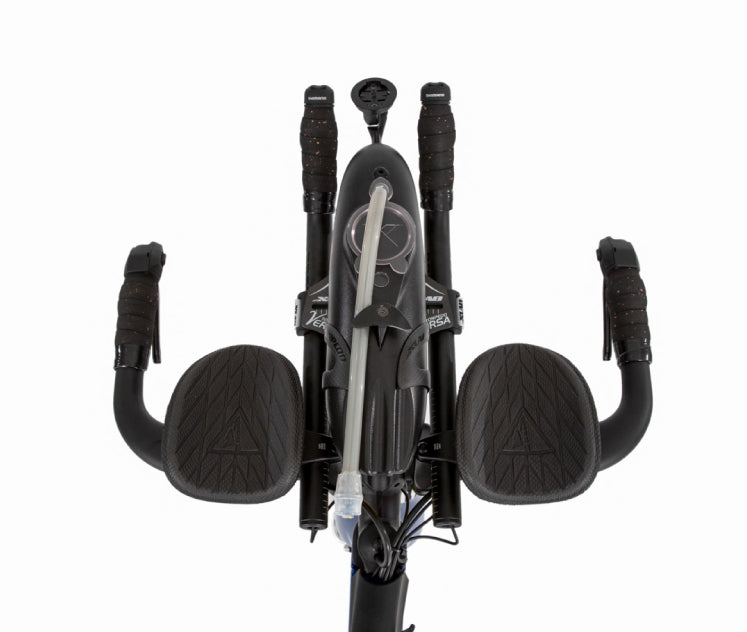

  • Integrated Hydration - BTA (Between-the-arm hydration) options improve hydration and aerodynamics

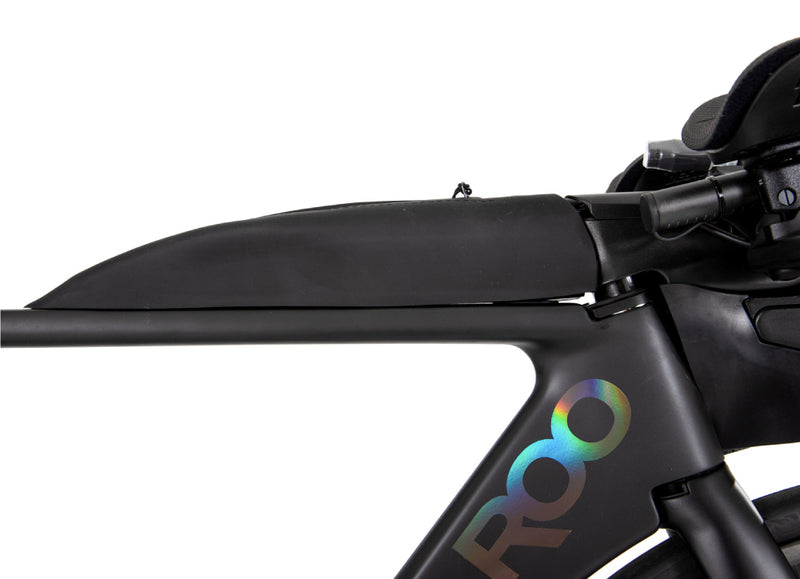

  • Nutrition Box - Aero top tube nutrition box with a rigid rubber design and a simple zipper closure
  • QR.SF Short Fork - Minimalist design saves weight, improves aerodynamics at greater yaw angles, and provides responsive handling
  • QR.SP carbon seatpost - Lightweight and aero with a high range of adjustability

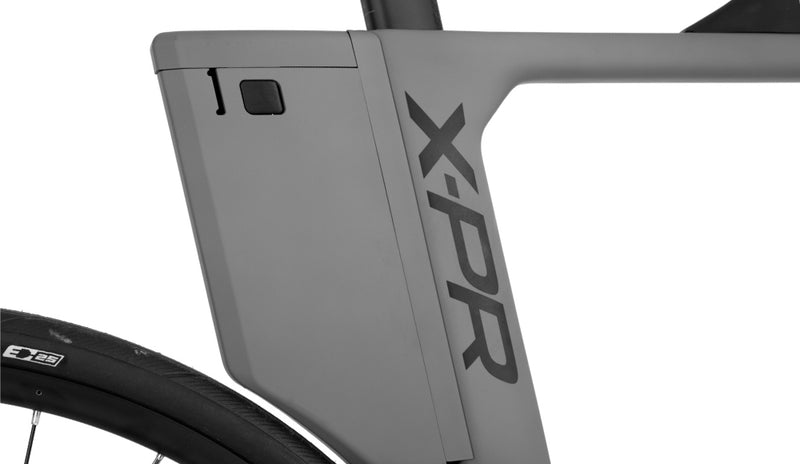

  • Qbox Aero Integrated Storage - Fully removable QBox storage box holds spares while improving aerodynamics

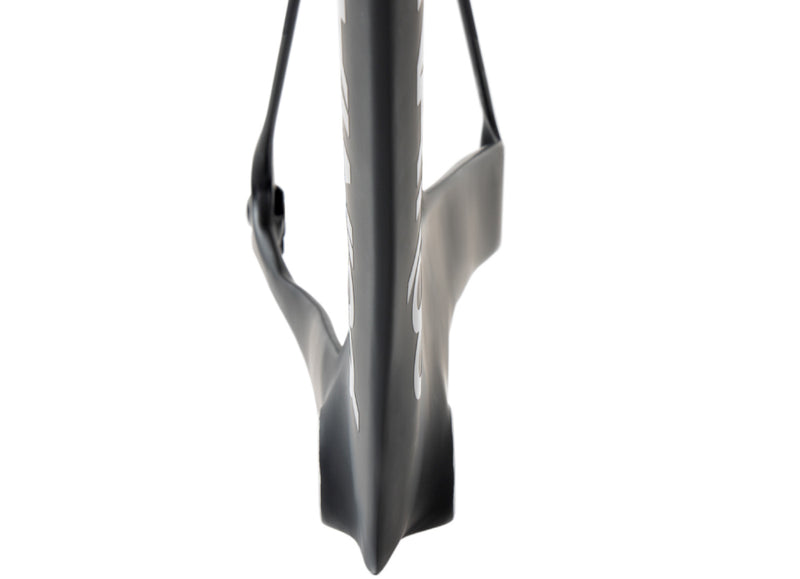

  • Shift+ Downtube - Asymmetric shape diverts air to the cleaner non-drive side of the frame

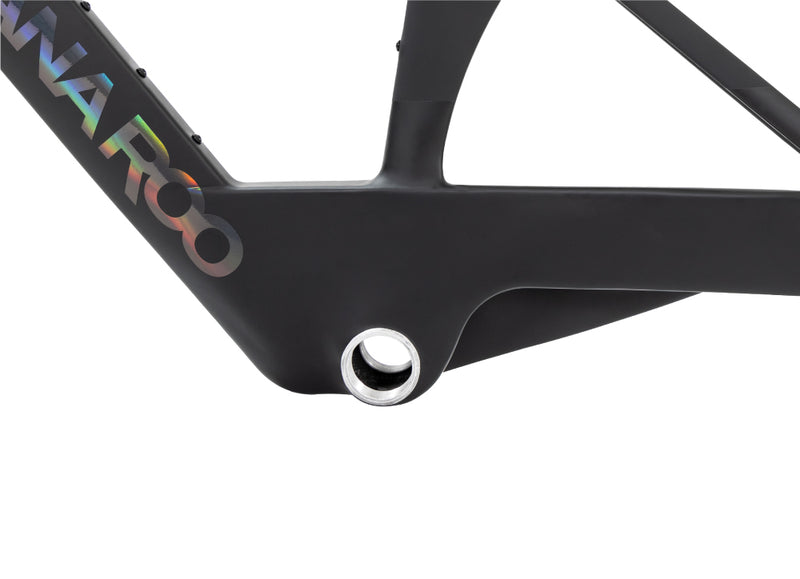

  • LEA2 Chainstay - Leading Edge Absent non-drive chainstay reduces disruption and drag
  • T47 BB - Threaded bottom bracket silently increases stiffness, serviceability, and reliability

Bar, Stem & Crank Specs

  • Stem Length
  • Size 48-50 — 75mm
  • Size 52-54 — 90mm
  • Size 56-58.5 — 110mm

  • Crank Length
  • Size 48-52 — 165mm
  • Size 54-56 — 170mm
  • Size 58.5 — 172.5mm

  • Crank Length Ultegra 11 Spd Only*
  • Size 48-50 — 170mm
  • Size 52-54 — 170mm
  • Size 56-58.5 — 172.5mm

  • Bar Width
  • Size 48-52 — 42cm
  • Size 54-56 — 42cm
  • Size 58.5 — 42cm

Select a build kit:

Groupset Shimano 105 Di2 12 Spd
Fork QR.SF – Short Fork Aero Design
Headset Cane Creek IS41
Cockpit Select from Above
Aero Extensions Select from Above
Seatpost QR.SP – Short Post Aero Carbon
Saddle Choose From Above
Shifters Ultegra Di2 R8060 Di2 12 spd (Located on Extensions & Brake Levers)
Front Derailleur Shimano 105 R7150 Di2 12 spd
Rear Derailleur Shimano 105 R7150 Di2 12 spd
Brakes TRP Spyre Mechanical Disc
Disc rotors Shimano RT54 160mm
Crankset Shimano 105 R7100 52/36 12 spd
Cassette Shimano 105 R7100 11-34 12 spd
Chain Shimano M7100 12 spd
Bottom Bracket T47
Tires Continental Ultra Sport III 28c
Wheelset Select Wheels Above
Top Tube Nutrition X-PR Aero Top Tube Storage System
Qbox X-PR Aero QBox
Riser Kit Wing 10a/Sonic 39a – 40mm included/340mm length; Wing 20C Ergo+ 35SLC – 55mm included/340mm length
Groupset Ultegra Di2 12 Spd
Fork QR.SF – Short Fork Aero Design
Headset Cane Creek IS41
Cockpit Select from Above
Aero Extensions Select from Above
Seatpost QR.SP – Short Post Aero Carbon
Saddle Choose From Above
Shifters Ultegra Di2 R8060 Di2 12 spd (Located on Extensions & Brake Levers)
Front Derailleur Ultegra Di2 8150 12 spd
Rear Derailleur Ultegra Di2 8150 12 spd
Brakes TRP Spyre Mechanical Disc
Disc rotors Shimano CL800 160mm
Crankset Ultegra R8100 52/36 12 spd
Cassette Ultegra R8100 11-30 12 spd
Chain Shimano M8100 12 spd
Bottom Bracket T47
Tires Continental Ultra Sport III 28c Folding
Wheelset Select Wheels Above
Top Tube Nutrition X-PR Aero Top Tube Storage System
Qbox X-PR Aero QBox
Riser Kit Wing 10a/Sonic 39a – 40mm included/340mm length; Wing 20C Ergo+ 35SLC – 55mm included/340mm length
Groupset SRAM Force eTap AXS D2 12 Spd 2X
Fork QR.SF – Short Fork Aero Design
Headset Cane Creek IS41
Cockpit Select from Above
Aero Extensions Select from Above
Seatpost QR.SP – Short Post Aero Carbon
Saddle Choose From Above
Shifters SRAM eTap AXS 12 spd (Located on Extensions & Brake Levers)
Front Derailleur SRAM Force AXS 12 spd
Rear Derailleur SRAM Force AXS 12 spd
Brakes TRP Spyre Mechanical Disc
Disc rotors SRAM Pacelins CL 160mm
Crankset SRAM Force AXS 48/35 12 spd
Cassette SRAM Force XG1270 10-33 12 spd
Chain SRAM Force Flattop
Bottom Bracket T47
Tires Continental Ultra Sport III 28c Folding
Wheelset Select Wheels Above
Top Tube Nutrition X-PR Aero Top Tube Storage System
Qbox X-PR Aero QBox
Riser Kit Wing 10a/Sonic 39a – 40mm included/340mm length; Wing 20C Ergo+ 35SLC – 55mm included/340mm length
Groupset Shimano 105 12 Spd Mech
Fork QR.SF – Short Fork Aero Design
Headset Cane Creek IS41
Cockpit Select from Above
Aero Extensions Select from Above
Seatpost QR.SP – Short Post Aero Carbon
Saddle Choose from above
Shifters MicroShift
Front Derailleur Shimano 105 R7100 12 spd
Rear Derailleur Shimano 105 R7100 12 spd
Brakes TRP Spyre Mechanical Dis
Disc rotors Shimano RT54 160mm
Crankset Shimano 105 R7100 52/36 12 spd
Cassette Shimano 105 R7100 11-34 12 spd
Chain Shimano M7100 12 spd
Bottom Bracket T47
Tires Continental Ultra Sport III 28c
Wheelset Select Wheels Above
Top Tube Nutrition X-PR Aero Top Tube Storage System
Qbox X-PR Aero QBox
Riser Kit Wing 10a/Sonic 39a – 40mm included/340mm length; Wing 20C Ergo+ 35SLC – 55mm included/340mm length
48cm 50cm 52cm 54cm 56cm 58.5cm
Seat Tube 48cm 50cm 52cm 54cm 56cm 58.5cm
Top tube 47cm 49cm 51cm 53cm 54.5cm 56cm
Head tube 5.8cm 8cm 10cm 12.2cm 14.3cm 17cm
Head Tube Angle 72° 72° 72° 72° 72° 72°
Seat Tube Angle 77/83° 77/83° 77/83° 77/83° 77/83° 77/83°
Chainstay 39.5cm 39.5cm 39.5cm 39.5cm 39.5cm 39.5cm
Wheelbase 95.3cm 96.7cm 99.4cm 101.5cm 103.1cm 104.8cm
Standover 73cm 75cm 77cm 79cm 81.5cm 84cm
Front Center 56.9cm 58.4cm 61cm 63.1cm 64.8cm 66.5cm
BB Drop 7.35cm 7.35cm 7.35cm 7.35cm 7.35cm 7.35cm
Wheel size 700c 700c 700c 700c 700c 700c
Stack 47.5cm 49.5cm 51.5cm 53.5cm 55.5cm 58cm
Reach 38.2cm 39.2cm 41.2cm 42.7cm 43.7cm 44.7cm

Recommended Bar, Stem & Crank Specs

Stem Length

Size Length
48-50 75mm
52-54 90mm
56-58.5 110mm

Crank Length

Size Length
48-52 165mm
54-56 170mm
58.5 172.5mm

Crank Length Ultegra 11 Spd Only

Size Length
48-50 170mm
52-54 170mm
56-58.5 172.5mm

Bar Width

Size Width
48-52 42cm
54-56 42cm
58.5 42cm

Bar Risers

Bar Model Riser Height
Wing 10a Bars 40mm
Wing 20c Bars 55mm
48
150cm 4'11" - 162cm 5'4"
50
160cm 5'3" - 170cm 5'10"
52
170cm 5'7" - 178cm 5'10"
54
175cm 5'9" - 185cm 6'1"
56
180cm 5'11" - 190cm 6'3"
58.5
188cm 6'2" - 201cm 6'7"

The amount of assembly required depends on shipping option you select. Typically our bike assembly runs between 30 to 45 minutes. Check out our shipping and delivery options to find the best option for you and your budget.

The V-PR is a flagship model designed from the ground up to replace Quintana Roo's legendary PRSeries triathlon bikes with class-leading aerodynamic performance and the lowest weight possible. The X-PR frame uses the same mold as the V-PR, but it is built with more affordable carbon fiber to reduce cost. The X-PR offers the same class-leading aerodynamic performance as the V-PR, but weighs a few hundred grams more.

Triple check the seatpost battery/Di2 wire connection. Many times even though you think you have the wire firmly connected, give it another push and 9 times out of 10 the system comes to life.

We spec different length components on our bikes based on common lengths per each size of bike. If you are looking to specify what length components or the gearing you'd like on your new Quintana Roo just live-chat or contact us and we'll get you started on a custom order.

Absolutely. Our bikes are built to order so you can customize however you'd like. If there are components you'd really like on your bike but don't see them offered live-chat or contact us for availability and a custom quote!

No, the BTA System has been designed and tested with the Arundel Mandible bottle cages to ensure bottle retention and safety during training and racing.

For additional support, please contact Quintana Roo Customer Service or visit our website for further assistance.
