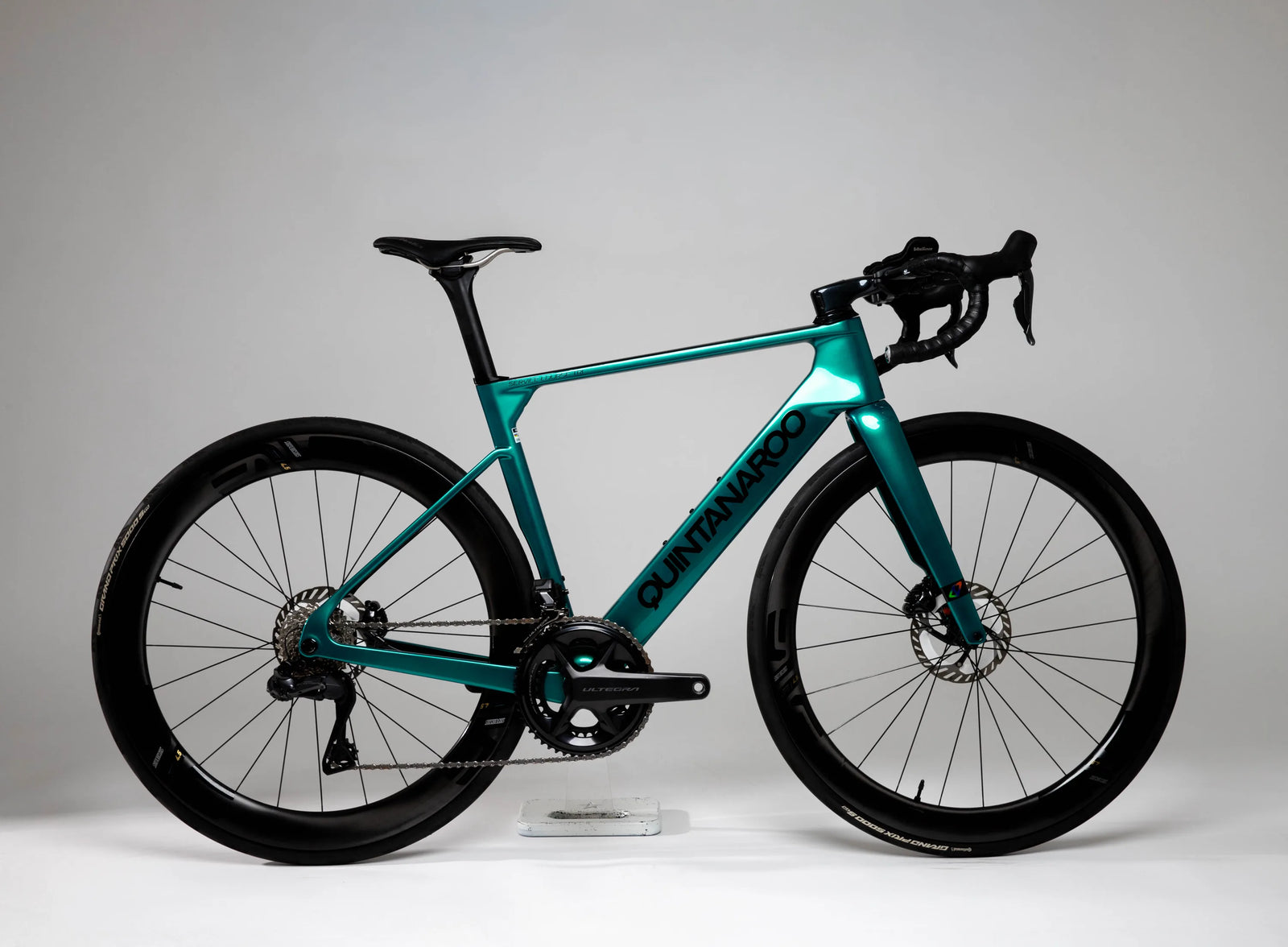

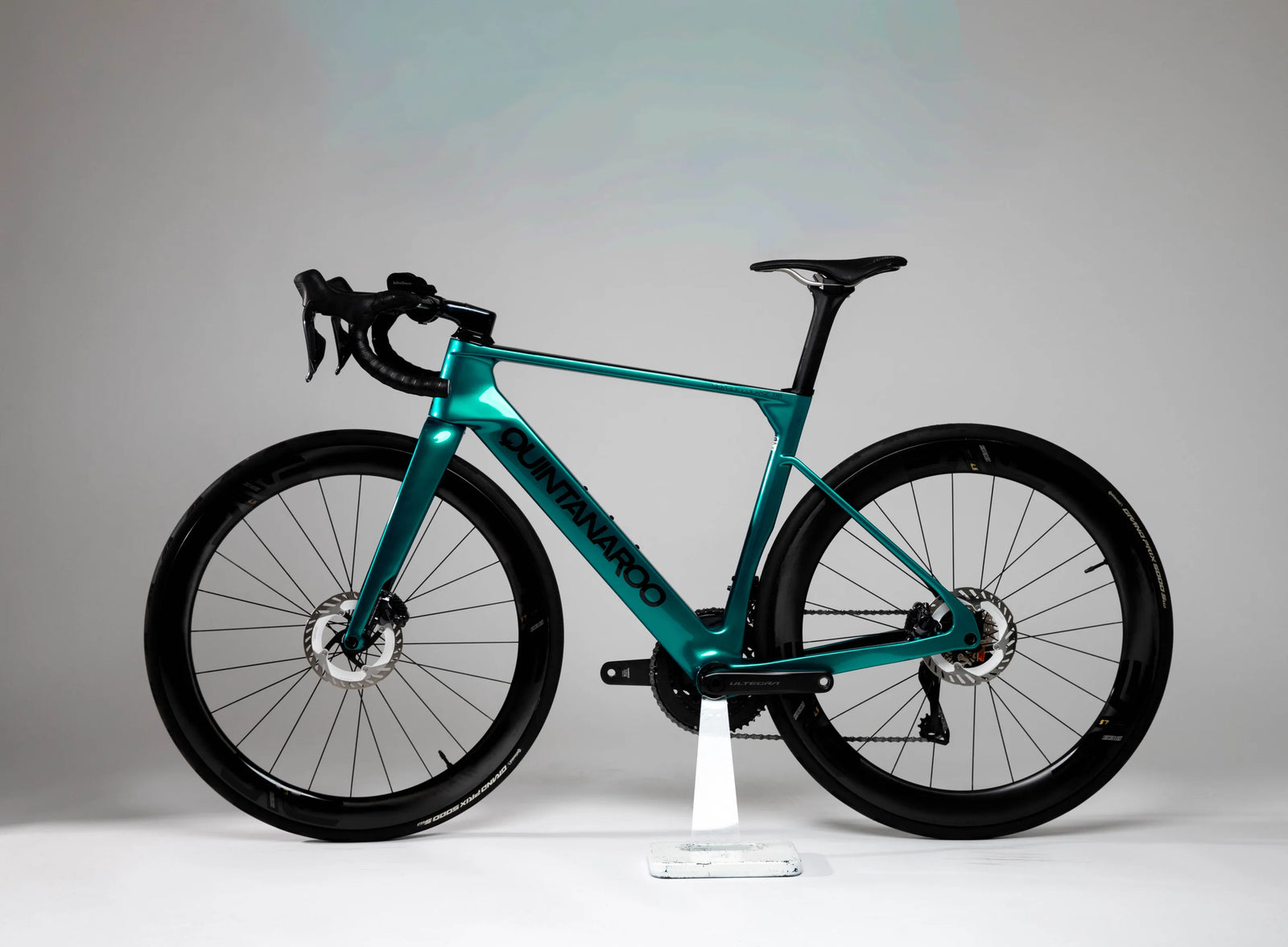

Studio Next Service Course Tri Ultegra Di2 12 Spd | Size M

STUDIO NEXT Service Course Tri ULTEGRA DI2 12 SPD | SIZE M

Name: Studio Next Service Course Tri Ultegra Di2 12 Spd | Size M
Brand: Quintana Roo Tri
SKU: QR-665
Price: 8699.0 USD
Availability: InStock

$8,699 USD $8,699 MSRP $10,899

In stock Out of stock

[QR-665] Studio Next - Service Course Tri (M, Podium Green, Black Paint, Ultegra Di2 12 Spd, ENVE SES 4.5, Recommended, No Extensions, Selle Italia Watt Ti-316, No Upgrade, Lizard Skin DSP Bar Tape, None, 11-30, Recommended, Standard Gearing - 52x36, Recommended, No Pedals, GP5000 S TR 28c Black)

Easy Financing

Shipping Worldwide

EXPLORE THE DETAILS

The Service Course Tri is enhanced with our highest-grade Studio NEXT carbon fiber and a more sophisticated carbon lay-up to reduce frame weight by 150 grams. With class-leading aerodynamics, handling, and weight, it is the ultimate do-it-all triathlon weapon.

Frame weight: 924 grams (size M) - The Studio NEXT Service Course is one of the lightest triathlon frame options
Studio NEXT Carbon - Our highest grade carbon fiber and most sophisticated carbon lay-up reduces frame weight by 150 grams
Exclusive premium Studio NEXT paint color options
Paint matched one-piece aero cockpits maximize aerodynamics and aesthetics
Draft-Legal - Standard drop-bar handlebars and a UCI-legal frame maintain eligibility for draft-legal events
Optional Clip-On Extensions - Clip-on compatible cockpits to add extensions for middle and long distance events
Aero Headtube - Extended, narrowed, and shaped to reduce frontal area and direct air rearward
Aero Fork - All-new fork design creates efficient airflow around the front tire
Aero Downtube - Deep, aggressive shape reduces turbulence and keeps airflow attached
Wide Tire Clearance - Clearance for tires up to 36mm wide
UDH - Universal Derailleur Hanger for serviceability and compatibility
Threaded T47A BB - Silently increases stiffness, serviceability, and reliability


Size	XS	S	M	L
Stack (cm)	51.5	53.5	56	58.5
Reach (cm)	37	38	39	40
Standover Height (cm)	71.1	74.3	77.5	80.9
Top Tube Length (cm) virtual horizontal	51.3	53.3	55.6	57.3
Seat Tube Angle	74/82°	74/82°	74/82°	74/82°
Seat Tube Length (cm)	41	45	48.5	52
Head Tube Angle	71˚	72˚	73˚	73˚
Head Tube Length (cm)	10.2	11.9	14.4	17.1
Wheelbase (cm)	97.6	98.3	99.3	101.2
Front Center (cm)	57.3	58.4	59.2	61.1
Chainstay Length (cm)	41.1	41.1	41.1	41.1
BB Drop (cm)	7.4	7.4	7.2	7
Trail (cm - 28mm tire)	6.84	6.2	5.57	5.57
Fork Offset (cm)	4.7	4.7	4.7	4.7
