PRsix Disc

$ 7,650.00 USD $ 8,500.00 USD

Geometry Guide

PRSERIES GEOMETRY

Size	48	50	52	54	56	58.5
Seat Tube Length	48cm	50cm	52cm	54cm	56cm	58.5cm
Top Tube Length	47cm	49cm	51cm	53cm	54.5cm	56cm
Head Tube Length	7.4cm	9.5cm	11.5cm	14.2cm	15.8cm	18.4cm
Head Tube Angle	71cm	72cm	72cm	72cm	72cm	72cm
Seat Tube Angle	77 / 83˚	77 / 83˚	77 / 83˚	77 / 83˚	77 / 83˚	77 / 83˚
Chainstay Length	39.5cm	39.5cm	39.5cm	39.5cm	39.5cm	39.5cm
Wheelbase	95.7cm	96.8cm	99.5cm	101.7cm	103.1cm	105cm
Standover Height	73cm	75cm	77cm	79cm	81.5cm	84cm
Front Center	57.4cm	58.4cm	61cm	63.3cm	64.7cm	66.5cm
BB Drop	7.35cm	7.35cm	7.35cm	7.35cm	7.35cm	7.35cm
Fork Rake	4.8cm	4.8cm	4.8cm	4.8cm	4.8cm	4.8cm
Stack	48cm	50cm	52cm	54cm	56cm	58.5cm
Reach	38cm	39cm	41cm	42.5cm	43.5cm	44.5cm

XY FIT COORDINATES FOR PRSERIES BIKES

DOWNLOAD PRSIX SERIES FIT COORDINATES | DOWNLOAD PRFIVE & PRFOUR SERIES FIT COORDINATES

Financing Options

LOOKING FOR A CUSTOM PAINT AND DECAL COMBINATION?

Make a custom bike builder appointment or chat with us now about an upgrade.

INTERNATIONAL ORDERS:

Price excludes any applicable VAT, duties and custom import fees.

CONSIDERING DISC BRAKES?

DISC BRAKE SUPERBIKE

Looking for every advantage you can get on your way to the podium? The PRsix is wind-tunnel designed plus real-world tested and approved by our team of Quintana Roo triathletes.

The combination of QR's SHIFT+ technology, boat-tail airfoils, and leading-edge absent chainstay gives you superior aero advantages over the competition. PRsix features a wide range of position adjustment to find the perfect balance of aero and comfort with our proprietary integrated stem/fork design and Perfect Position seatpost.

With the precision stopping power of disc brakes you'll stay in aero position longer knowing you have powerful brakes you can trust every time in any condition.

For use in a stationary trainer, a specific thru-axle adapter will need to be ordered. The rear thru-axle is an E-thru standard M12x1.5, 142mm long. The adapter will be specific to the trainer you own, so please check with the trainer manufacturer if you have any questions.

*Discount codes not applicable on sale products.

Key Features

SHIFT+ technology
40T carbon-fiber frameset
Disc brake technology
Perfect Fit 2.0 stem
QR aero storage containers

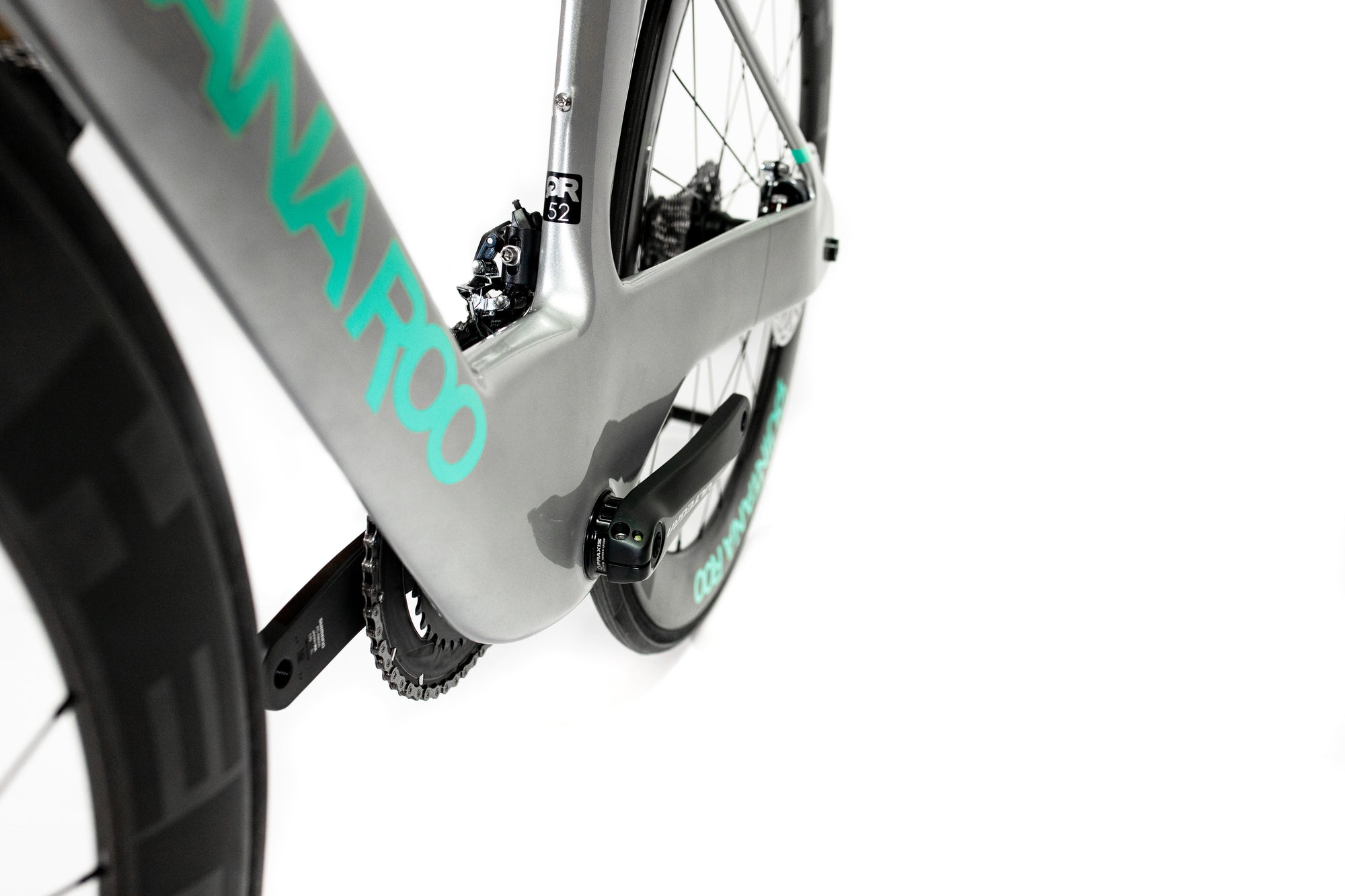

Leading edge absent chainstay
Simple wrenching and maintenance
QR Perfect Position seatpost
Order online direct with full-assembly ProBox or through your local authorized QR dealer

Component Specs
Drivetrain Upgrades
Wheelset Upgrades
Shipping & FAQ

We pair each Quintana Roo frame with some of the best components and drivetrains in the world. We take component specifications seriously, as the quality and performance of the components are just as important as the frames we design and produce.

Looking for a specific crank length, saddle or gearing on your new QR bike? Chat with us or contact us now! Additional charges may apply.

Dura-Ace Di2 Electronic

Fork	QR Integrated Aero Disc Carbon
Headset	Cane Creek IS41
Stem	QR 2.0 Aero Stem
Handlebars	Profile Aeria Ultimate Carbon with 35C extensions (340mm)
Seatpost	QR Aero Carbon
Saddle	ISM PN 3.0
Shifters	Dura-Ace Di2
Front Derailleur	Dura-Ace Di2
Rear Derailleur	Dura-Ace Di2
Brakes	Dura-Ace Hydraulic Disc

Disc Rotors	Dura-Ace 160mm
Crankset	Dura-Ace 52-36
Cassette	Dura-Ace 11-28
Chain	Dura-Ace
Bottom Bracket	Praxis PF30 Ceramic
Tires	Continental GP5000 25c
Wheelset	Select Wheels Above
Top Tube Storage	QR Top Tube Storage System
QBox	QR QBox
Riser Kit	55mm Profile Design Riser Kit Included

Ultegra Di2 Electronic

Fork	QR Integrated Aero Disc Carbon
Headset	Cane Creek IS41
Stem	QR 2.0 Aero Stem
Handlebar	Profile Aeria Ultimate Carbon with 35C extensions (340mm)
Seatpost	QR Aero Carbon
Saddle	ISM PN 3.0
Shifters	Dura-Ace Di2
Front Derailleur	Ultegra Di2
Rear Derailleur	Ultegra Di2
Brakes	Dura-Ace Hydraulic Disc

Disc Rotors	Dura-Ace 160mm
Crankset	FSA SLK Light 52-36
Cassette	Ultegra 11-28
Chain	Ultegra
Bottom Bracket	FSA PF30
Tires	Continental Ultrasport 3 Race 25c
Wheelset	Select Wheels Above
Top Tube Storage	QR Top Tube Storage System
QBox	QR QBox
Riser Kit	55mm Profile Design Riser Kit Included

Bar, Stem & Crank Specs

Stem Length	Size 48-50 — 75mm	Size 52-54 — 90mm	Size 56-58.5 — 110mm
Crank Length	Size 48-52 — 165mm	Size 54-56 — 170mm	Size 58.5 — 172.5mm
Bar Width	Size 48-52 — 42cm	Size 54-56 — 42cm	Size 58.5 — 42cm

SHIMANO DURA-ACE Di2 ELECTRONIC
The Shimano Dura-Ace Di2 Groupset provides the pinnacle of drivetrain performance. Designed and engineered to provide the most exceptional power transfer efficiency for professional riders, to help them achieve the ultimate victory. Shimano has cut no corners with the Dura-Ace Di2 groupset, which is virtually unmatched in terms of efficiency, technology and podium-proven performance. Upgrading to Di2 based system places gear shift buttons on both your aero bar extensions and base bars.

SHIMANO ULTEGRA Di2 ELECTRONIC
Market-leading electronic gear shifting thanks to the Di2 system and trickle-down technology from professional-level Dura-Ace groupsets. This system ensures shifting accuracy, which provides crisp and precise shifts with every push of a button. No adjustment is required once setup. Instead of mechanical cables, high-end Di2 electronic wires relay your gear selection instantly with a push of a button. Upgrading to Di2 based system places gear shift buttons on both your aero bar extensions and base bars.
ZIPP 404 NSW DISC
The NSW Tubeless Disc-brake wheels are aerodynamically optimized for wide tires to meet the performance needs of modern riders in search of low rolling resistance and high comfort. Throughout the development process our engineers carefully considered the rim-to-tire interface and how specific tire and rim widths affect aerodynamic performance. NSW technology adds to this legacy enhanced aero performance and tubeless compatibility, all with the benefits of disc brakes. Learn more atzipp.com.

ENVE SES 7.8 DISC
Disc brakes are beginning to appear on the most aerodynamic bikes in the world and the SES 7.8 is ready. While most wheel manufacturers simply repurpose their rim brake optimized wheel models into disc brake wheels by covering brake tracks with decals and adding disc hubs and more spokes, this leaves substantial amounts of performance on the table. A revolutionary new disc brake specific, aerodynamic, carbon fiber triathlon and time trial wheelset. The SES 7.8 Disc is both aerodynamically and structurally optimized for use with disc brakes. Visitenve.com/products/ses-7-8/discfor more information.

HED VANQUISH 6GP
The co-developed Vanquish 6 GP wheelset takes QR’s disc-brake triathlon bikes to the next level of performance. Made in HED’s Minnesota factory, the Vanquish 6 GP undergoes an in-depth quality control process. The proprietary wheels use the same patented rim shape that HED uses for all of its disc-specific wheelsets. The 6 GP shape is all-new, with a 30mm external width (21mm internal width). This results in a superior aerodynamic performance with 23-28mm tires.

SHIMANO RS370 DISC
The Shimano WH-RS370-TL Road/Cyclocross wheelset for tubeless with disc Center-Lock and 12mm E-thru version - Offering all the technology of Shimano wheels at an economical price.
Find answers to common questions about bike builds, custom component selections, and shipping below. If you have any questions feel free to live-chat with us or contact us.

Click here for helpful videos

How long does it take to receive my bike?
Most frame and frameset orders ship in 5-7 business days. Full bike orders can be expected to ship in 1-2 weeks time and this varies per bike model, size, and build kit. For an accurate delivery estimate live-chat contact us!

Can I make changes to the build kit?
Absolutely. Our bikes are built to order so you can customize however you'd like. If there are components you'd really like on your bike but don't see them offered live-chat or contact us for availability and a custom quote!

Can I have a different length stem, crankarms, or different gearing?
We spec different length components on our bikes based on common lengths per each size of bike. If you are looking to specify what length components or the gearing you'd like on your new Quintana Roo just live-chat or contact us and we'll get you started on a custom order.

I received my Di2 bike, but the system isn't charging?
Triple check the seatpost battery/Di2 wire connection. Many times even though you think you have the wire firmly connected, give it another push and 9 times out of 10 the system comes to life. Watch this video to learn more.

What kind of thru-axle do I need for my stationary trainer?
For use in a stationary trainer, a specific thru-axle will need to be ordered. The rear thru-axle is an E-thru standard M12x1.5, 142mm long.

How much does shipping cost?
UNITED STATES: Shipping for frame and frameset orders is $55 USD. For full bike orders shipping is $195 and includes professional assemble at our Quintana Roo factory and shipment in our Quintana Roo Pro Box so you don't have to assemble the bike when it arrives to your door.

OUTSIDE OF USA: Shipping for frame and frameset orders is $95 USD. For full bike orders shipping is $195 - this includes semi-pro assembly and ships in our more compact International Shipping Box for safe keeping.

Does my bike arrive assembled?
For online direct orders in the United States our bikes ship assembled in our Quintana Roo ProBox. Adjust your bars then add the seatpost and front wheel and you're ready to ride. If you order your bike through one of our authorized dealers, your bike will ship in our standard shipping box with partial assembly.

*Size 56cm and 58.5cm bikes arrive without the rear wheel installed.

QR SHIPPING PROBOX: EASY DELIVERY + ASSEMBLY

PRSERIES GEOMETRY

Size	48	50	52	54	56	58.5
Seat Tube Length	48cm	50cm	52cm	54cm	56cm	58.5cm
Top Tube Length	47cm	49cm	51cm	53cm	54.5cm	56cm
Head Tube Length	7.4cm	9.5cm	11.5cm	14.2cm	15.8cm	18.4cm
Head Tube Angle	71cm	72cm	72cm	72cm	72cm	72cm
Seat Tube Angle	77 / 83˚	77 / 83˚	77 / 83˚	77 / 83˚	77 / 83˚	77 / 83˚
Chainstay Length	39.5cm	39.5cm	39.5cm	39.5cm	39.5cm	39.5cm
Wheelbase	95.7cm	96.8cm	99.5cm	101.7cm	103.1cm	105cm
Standover Height	73cm	75cm	77cm	79cm	81.5cm	84cm
Front Center	57.4cm	58.4cm	61cm	63.3cm	64.7cm	66.5cm
BB Drop	7.35cm	7.35cm	7.35cm	7.35cm	7.35cm	7.35cm
Fork Rake	4.8cm	4.8cm	4.8cm	4.8cm	4.8cm	4.8cm
Stack	48cm	50cm	52cm	54cm	56cm	58.5cm
Reach	38cm	39cm	41cm	42.5cm	43.5cm	44.5cm

XY FIT COORDINATES FOR PRSERIES BIKES

DOWNLOAD PRSIX SERIES FIT COORDINATES | DOWNLOAD PRFIVE & PRFOUR SERIES FIT COORDINATES

5 REASONS TO BUY QUINTANA ROO

From inventing the first triathlon-specific bike in 1987 to crafting the ultimate rider experience, Quintana Roo has been dedicated to the sport of triathlon since day one. A combination of superior comfort, stability, performance, and safety are considered when designing our products, and everything we do is backed by a team of supportive and like-minded triathletes.

So, what are the five reasons to buy Quintana Roo bikes?

PRseries Sizing
SRseries Sizing
QR Swim Sizing

PRSERIES SIZE GUIDE

PRsix2 | PRsix | PRfive | PRfour

SELECT YOUR HEIGHT

FRAME SIZE

48
FRAME SIZE

48
FRAME SIZE

48
FRAME SIZE

48
OR
50
FRAME SIZE

48
OR
50
FRAME SIZE

48
OR
50
FRAME SIZE

50
FRAME SIZE

50
FRAME SIZE

50
OR
52
FRAME SIZE

52
FRAME SIZE

52
OR
54
FRAME SIZE

52
OR
54
FRAME SIZE

54
OR
56
FRAME SIZE

54
OR
56
FRAME SIZE

54
OR
56
FRAME SIZE

56
OR
58.5
FRAME SIZE

56
OR
58.5
FRAME SIZE

58.5
FRAME SIZE

58.5
FRAME SIZE

58.5
FRAME SIZE

58.5

On the border of two sizes?

The right size may depend on certain body measurements and your riding style. Feel free to contact us at any time regarding sizing questions - our product specialists are experienced with finding riders the right fit by cross-referencing your information with our QR Rider Fit database.

Measure for Maximum Performance
