X-PR Stealth + Holo Black | Size 52
X-PR Stealth + Holo Black | Size 52
X-PR Stealth + Holo Black | Size 52
X-PR Stealth + Holo Black | Size 52

X-PR Stealth + Holo Black | Size 52

Size Guide

Sold Out INTERNATIONAL ORDERS:

Price excludes any applicable VAT, duties and custom import fees.

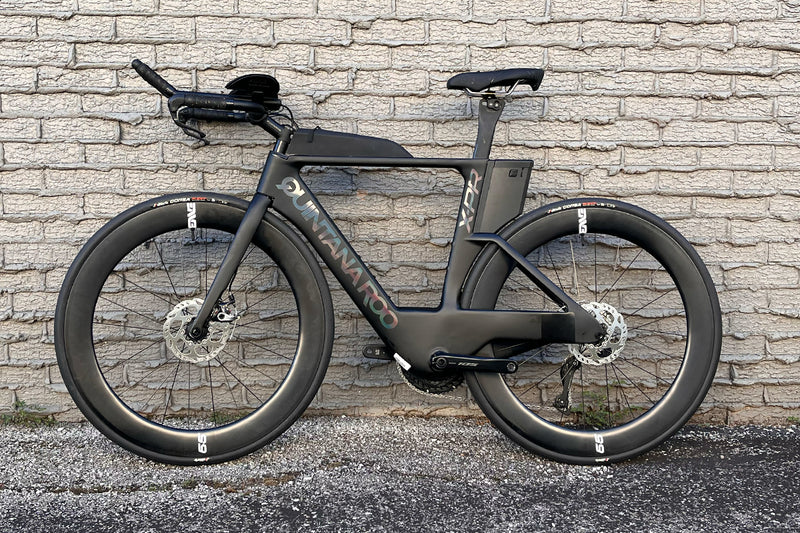

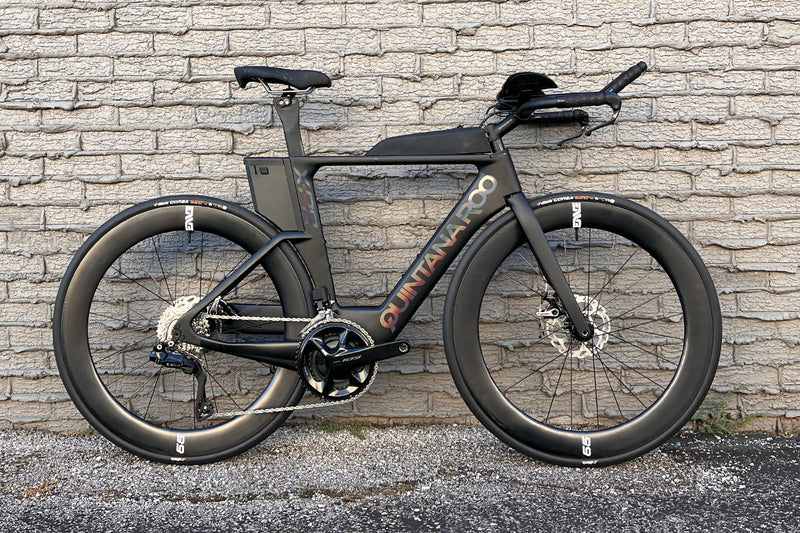

QR-522 | X-PR Ultegra Di2 12 spd with   Profile Wing 10a/35a Sonic Extensions. Enve Foundation 65 wheels with Tubeless Vittoria Corsa N.EXT 700x28 TLR, ISM PS1.0, Size 52

X MARKS THE SPOT.

The X-PR was developed with speed and stability as central to its design, delivered in a way that makes it truly attainable for any athlete. Its frameset has every bit of tunnel-proven aerodynamic prowess from the fastest superbike on the planet: the V-PR. From geometry to new slim aero cross sections, invisible cable routing, and our groundbreaking Leading Edge Absent 2 (LEA2) non-driveside stay, which shuttles air cleanly for speed and stability, the X-PR slices through the wind with confident ease.

Because it is compatible with today’s existing cockpit systems, the X-PR has an exceptionally wide fit window, making fit and adjustability easy for triathletes of every level.

The X-PR also has all the requisites you demand in a bike engineered to perform. From disc brakes and a wide fit window to integrated hydration and tool and nutrition storage options, the X-PR is built with the athlete in mind.

By incorporating a highly utilitarian, cost-efficient carbon fiber and outfitting the X-PR with elite-level component options, we’re able to bring top-tier performance to the masses. From your first tri to your Ironman personal record effort, the X-PR is ready to confidently take you to the top.

Key Features

  • Trickle-down technology using V-PR frame design, with highly utilitarian carbon layup to hit specific weight, stiffness and price targets
  • All new CFD-engineered and tunnel-tested slim aerodynamic cross sections, yielding the fastest QR ever across a wide range of wind conditions
  • Increased compatibility, widened fit window and increased stack/reach adjustment with the use of standard cockpits
  • Re-designed SHIFT+ downtube for improved airflow, increasing stability and aerodynamic performance
  • Updated Leading Edge Absent (LEA2) non-driveside chainstay for improved airflow and weight savings
  • Invisible cable routing
  • Lightweight QR.SP carbon seatpost
  • T47 Bottom Bracket, stronger more precision fit with added stiffness
  • 3 year factory certified warranty

PRSERIES GEOMETRY

Size 48 50 52 54 56 58.5
Seat Tube Length 48cm 50cm 52cm 54cm 56cm 58.5cm
Top Tube Length 47cm 49cm 51cm 53cm 54.5cm 56cm
Head Tube Length 7.4cm 9.5cm 11.5cm 14.2cm 15.8cm 18.4cm
Head Tube Angle 71˚ 72˚ 72˚ 72˚ 72˚ 72˚
Seat Tube Angle 77 / 83˚ 77 / 83˚ 77 / 83˚ 77 / 83˚ 77 / 83˚ 77 / 83˚
Chainstay Length 39.5cm 39.5cm 39.5cm 39.5cm 39.5cm 39.5cm
Wheelbase 95.7cm 96.8cm 99.5cm 101.7cm 103.1cm 105cm
Standover Height 73cm 75cm 77cm 79cm 81.5cm 84cm
Front Center 57.4cm 58.4cm 61cm 63.3cm 64.7cm 66.5cm
BB Drop 7.35cm 7.35cm 7.35cm 7.35cm 7.35cm 7.35cm
Fork Rake 4.8cm 4.8cm 4.8cm 4.8cm 4.8cm 4.8cm
Stack 48cm 50cm 52cm 54cm 56cm 58.5cm
Reach 38cm 39cm 41cm 42.5cm 43.5cm 44.5cm

XY FIT COORDINATES FOR PRSERIES BIKES

DOWNLOAD PRSIX SERIES FIT COORDINATES    |    DOWNLOAD PRFIVE & PRFOUR SERIES FIT COORDINATES

AERO ROAD BIKE GEOMETRY

Size XS S M L XL
Seat Tube Length 44.5cm 46.5cm 49.0cm 51.0cm 53.5cm
Top Tube Length 51.5cm 53.0cm 55.0cm 57.0cm 58.5cm
Head Tube Length 11.5cm 13.0cm 15.5cm 17.0cm 19.0cm
Head Tube Angle 71.2˚
71.5˚
72.0˚
72.0˚
72.0˚
Seat Tube Angle 73.5˚
73.5˚
73.5˚
73.5˚
73.5˚
Chainstay Length 41.5cm 41.5cm 41.5cm 41.5cm 41.5cm
Wheelbase 97.0cm 98.4cm 99.7cm 101.9cm 103.5cm
Standover Height 72.3cm 74.5cm 77.4cm 79.2cm 81.2cm
Front Center 57.0cm 58.0cm 59.5cm 61.5cm 63.0cm
BB Drop 7.2cm 7.2cm 7.2cm 7.2cm 7.2cm
Fork Rake 4.5cm
4.5cm
4.5cm
4.5cm
4.5cm
Stack 52.5cm 54.0cm 56.5cm 58.0cm 60.0cm
Reach 36.0cm 37.0cm 38.0cm 40.0cm 41.0cm

X-PR GEOMETRY

Size 48 50 52 54 56 58.5
Seat Tube Length 48cm 50cm 52cm 54cm 56cm 58.5cm
Top Tube Length 47cm 49cm 51cm 53cm 54.5cm 56cm
Head Tube Length 5.8cm 8cm 10cm 12.2cm 14.3cm 17cm
Head Tube Angle 72˚ 72˚ 72˚ 72˚ 72˚ 72˚
Seat Tube Angle 77 / 83˚ 77 / 83˚ 77 / 83˚ 77 / 83˚ 77 / 83˚ 77 / 83˚
Chainstay Length 39.5cm 39.5cm 39.5cm 39.5cm 39.5cm 39.5cm
Wheelbase 95.3cm 96.7cm 99.4cm 101.5cm 103.1cm 104.8cm
Standover Height 73cm 75cm 77cm 79cm 81.5cm 84cm
Front Center 56.9cm 58.4cm 61cm 63.1cm 64.8cm 66.5cm
BB Drop 7.35cm 7.35cm 7.35cm 7.35cm 7.35cm 7.35cm
Wheel Size 700 700 700 700 700 700
Stack 47.5cm 49.5cm 51.5cm 53.5cm 55.5cm 58cm
Reach 38.2cm 39.2cm 41.2cm 42.7cm 43.7cm 44.7cm

DOWNLOAD FIT COORDINATES FOR X-PR BIKE

X-PR with QR Aero Stem/Profile Design Wing 10a/Sonic 35a Extensions
X-PR with QR Aero Stem/Profile Design Aeria Ultimate Wing Carbon/Ergo 35c+ Extensions
X-PR with Profile 1/Seventeen Stem/Profile Design Wing 10a/Sonic 35a Extensions
X-PR with Profile 1/Seventeen Stem/Profile Design Aeria Ultimate Wing Carbon/Ergo 35c+ Extensions

V-PR GEOMETRY

Size 48 50 52 54 56 58.5
Seat Tube Length 48cm 50cm 52cm 54cm 56cm 58.5cm
Top Tube Length 47cm 49cm 51cm 53cm 54.5cm 56cm
Head Tube Length 5.8cm 8cm 10cm 12.2cm 14.3cm 17cm
Head Tube Angle 72˚ 72˚ 72˚ 72˚ 72˚ 72˚
Seat Tube Angle 77 / 83˚ 77 / 83˚ 77 / 83˚ 77 / 83˚ 77 / 83˚ 77 / 83˚
Chainstay Length 39.5cm 39.5cm 39.5cm 39.5cm 39.5cm 39.5cm
Wheelbase 95.3cm 96.7cm 99.4cm 101.5cm 103.1cm 104.8cm
Standover Height 73cm 75cm 77cm 79cm 81.5cm 84cm
Front Center 56.9cm 58.4cm 61cm 63.1cm 64.8cm 66.5cm
BB Drop 7.35cm 7.35cm 7.35cm 7.35cm 7.35cm 7.35cm
Wheel Size 700 700 700 700 700 700
Stack 47.5cm 49.5cm 51.5cm 53.5cm 55.5cm 58cm
Reach 38.2cm 39.2cm 41.2cm 42.7cm 43.7cm 44.7cm

FIT COORDINATES FOR V-PR BIKE

DOWNLOAD V-PR FIT COORDINATES FOR VISION PRO COCKPIT    |    DOWNLOAD V-PR FIT COORDINATES FOR VISION TFA COCKPIT

Shop Scratch, Dent and Demo Sale

get aero with qr

Size Chart

QUINTANA ROO BICYCLE SIZE GUIDES

View our size charts to see what size is best for you. After purchasing a new QR bicycle, our team will reach out to you to confirm your order and sizing information to be sure you have selected the optimum size.


V-PR + X-PR SIZE GUIDE

Find your frame sizes for the following bikes

V-PR | X-PR

SELECT YOUR HEIGHT

  • FRAME SIZE
    48

  • FRAME SIZE
    48

  • FRAME SIZE
    48

  • FRAME SIZE
    48

  • FRAME SIZE
    48
    OR
    50

  • FRAME SIZE
    48
    OR
    50

  • FRAME SIZE
    50

  • FRAME SIZE
    50

  • FRAME SIZE
    50
    OR
    52

  • FRAME SIZE
    52

  • FRAME SIZE
    52
    OR
    54

  • FRAME SIZE
    52
    OR
    54

  • FRAME SIZE
    54
    OR
    56

  • FRAME SIZE
    54
    OR
    56

  • FRAME SIZE
    54
    OR
    56

  • FRAME SIZE
    56
    OR
    58.5

  • FRAME SIZE
    56
    OR
    58.5

  • FRAME SIZE
    58.5

  • FRAME SIZE
    58.5

  • FRAME SIZE
    58.5

  • FRAME SIZE
    58.5



On the border of two sizes?
The right size may depend on certain body measurements and your riding style. Feel free to contact us at any time regarding sizing questions - our product specialists are experienced with finding riders the right fit by cross-referencing your information with our QR Rider Fit database.
Measure for Maximum Performance
If you're not transferring measurements from a similar triathlon specific bike, to get completely "dialed in" for maximum performance, we recommend you see a reputable professional bike fitter that can fit you to your new Quintana Roo.

PRSERIES SIZE GUIDE

Find your frame sizes for the following bikes

PRsix2 | PRsix | PRfive2 | PRfive | PRfour

SELECT YOUR HEIGHT

  • FRAME SIZE
    48

  • FRAME SIZE
    48

  • FRAME SIZE
    48

  • FRAME SIZE
    48

  • FRAME SIZE
    48
    OR
    50

  • FRAME SIZE
    48
    OR
    50

  • FRAME SIZE
    50

  • FRAME SIZE
    50

  • FRAME SIZE
    50
    OR
    52

  • FRAME SIZE
    52

  • FRAME SIZE
    52
    OR
    54

  • FRAME SIZE
    52
    OR
    54

  • FRAME SIZE
    54
    OR
    56

  • FRAME SIZE
    54
    OR
    56

  • FRAME SIZE
    54
    OR
    56

  • FRAME SIZE
    56
    OR
    58.5

  • FRAME SIZE
    56
    OR
    58.5

  • FRAME SIZE
    58.5

  • FRAME SIZE
    58.5

  • FRAME SIZE
    58.5

  • FRAME SIZE
    58.5



On the border of two sizes?
The right size may depend on certain body measurements and your riding style. Feel free to contact us at any time regarding sizing questions - our product specialists are experienced with finding riders the right fit by cross-referencing your information with our QR Rider Fit database.
Measure for Maximum Performance
If you're not transferring measurements from a similar triathlon specific bike, to get completely "dialed in" for maximum performance, we recommend you see a reputable professional bike fitter that can fit you to your new Quintana Roo.

SRSERIES SIZE GUIDE

Find your frame sizes for the following bikes

SRsix | SRfive

SELECT YOUR HEIGHT

  • FRAME SIZE
    XS

  • FRAME SIZE
    XS

  • FRAME SIZE
    XS
    OR
    S

  • FRAME SIZE
    XS
    OR
    S

  • FRAME SIZE
    XS
    OR
    S

  • FRAME SIZE
    S

  • FRAME SIZE
    M

  • FRAME SIZE
    M

  • FRAME SIZE
    M

  • FRAME SIZE
    M
    OR
    L

  • FRAME SIZE
    M
    OR
    L

  • FRAME SIZE
    L

  • FRAME SIZE
    L
    OR
    XL

  • FRAME SIZE
    XL

  • FRAME SIZE
    XL

  • FRAME SIZE
    XL

  • FRAME SIZE
    XL

On the border of two sizes?
The right size may depend on certain body measurements and your riding style. Feel free to contact us at any time regarding sizing questions - our product specialists are experienced with finding riders the right fit by cross-referencing your information with our QR Rider Fit database.
Measure for Maximum Performance
If you're not transferring measurements from a similar triathlon specific bike, to get completely "dialed in" for maximum performance, we recommend you see a reputable professional bike fitter that can fit you to your new Quintana Roo.
